Autel MaxiSYS Ultra Diagnostic Scanner ECU Coding Full VCMI-MV108S-BT506 and MSOAK Used

Autel MaxiSYS Ultra Diagnostic Scanner ECU Coding Full VCMI-MV108S-BT506 and MSOAK Used

Top Hardware
Autel MaxiSys Ultra ensures you a smooth and efficient diagnostic experience. Android 7.0 OS, Samsung octa-core processor, 4GB RAM & 256GB memory, 16MP Rear/5MP Front Camera. 12.7 inch TFT-LCD touch screen, 18000mAh 3.8 V battery, etc.

Topology Mapping 2.0
Autel Ultra scanner is able to display a CAN BUS tree with color coded modules in one page, which can present full system diagnostic results visually and make you work just to the point precisely.

Advanced 5-In-1 VCMI
Different from traditional scan tools, the automotive diagnostic scan tool Autel Ultra is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% vehicles on the market, Autel Ultra gets you everything in need, it's the top 1 solution provider for large car repair business.

Extensive Reset Services
This TOP car diagnostic scanner Autel Maxisys Ultra supports the most comprehensive services on the widest vehicles. Services include Oil Reset, EPB Reset, SAS Calibration, DPF Regen, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, EGR, VGT Turbo Calibration, Transmission, Headlamps, Window Door Roof etc.

ECU Coding and Programming
Professional automotive scan tool Autel MaxiSys Ultra enables enhanced ECU programming on specific BMW and Benz. It can finish program/ rewrite/ code/ match new ECU after new module replacement. Besides the ECU Programming, it also allows for advanced ECU Coding on most of regular cars to unfold hidden features and activate high-end functions to improve vehicle performance. ECU Programming and Coding is not universal, please send VIN to check before order.

Specifications :

Operating System
Android 7.0

Processor
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose 1.7GHz Quad-core A53)

Memory
4GB RAM 256GB On-board Memory

Display
12.7 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen

Connectivity
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 EDR,GPS
USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)

Camera
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel

Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack

Power and Battery
18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/3A Adapter

Operating Temp
0 to 50°C (32 to 122°F)

Storage Temp
-20 to 60°C (-4 to 140°F)

Dimensions (W x H x D)
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")

Weight
2.18kg (4.81 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

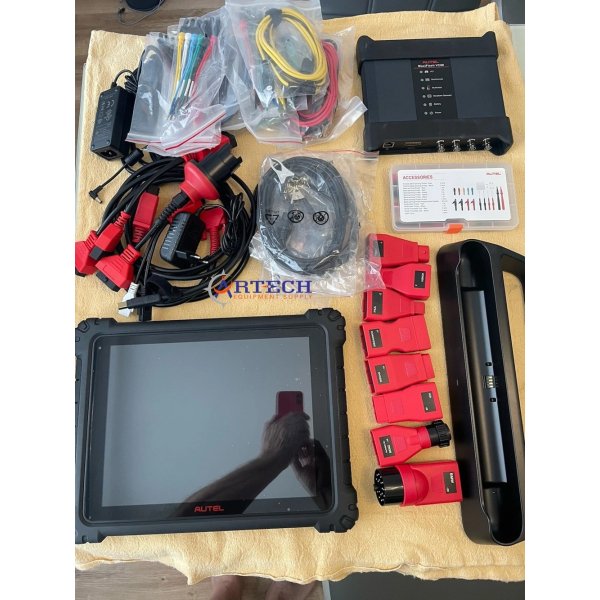

INCLUDED :

Maxisys Ultra Main Unit
MaxiFlash VCMI
Docking Station
Main Cable V2.0
USB 2.0 Cable V2
AC/DC Adapter(12V)
Cigarette Lighter
2 PCS*Light Fuse (6x30mm )
Clipper Cable
4 PCS*Scope Test Lead
2 PCS*Multimeter Test Lead
2 PCS*Secondary Ignition Pickup
2 PCS*Attenuator 20:1
4x6 PCS*Breakout Lead
1x2 PCS*Multimeter Probe
2x2 PCS*Flexible Back-pinning Probe
1x5 PCS*Back-pinning Probe - Red/Green/Blue/Yellow/Black
2 PCS*Back-pinning Probe Screw
20 PCS*Back-pinning Probe Replacement Needle
2x2 PCS*Small Crocodile Clip
1x2 PCS*Large Dolphin Clip
Quick Reference Guide
Packing List
Soft Cloth
Tool Box (177 x 102.5 x 23.5 mm)
Carrying Case (687 x 170 x 470 mm)

Also you can check product : Autel MaxiSYS MS919 With MV108S-BT506 and MSOAK Used

• Availability: 11 In Stock
• Model: MaxiSYS Ultra
• Brand:
