USED General Electric SpotChecker Weld Flaw Detector - Calibrated
SpotChecker is a hand-held flaw detector for testing spotwelds in situ on the production line. It weighs just 3.2 kg, is battery operated and is sealed to IP65. It features hot swap battery exchange to ensure continuous operation. SpotChecker does not require intensive training but offers the advantage of an “expert” system for people less qualified in weld inspection.
2,017.78€
Portable and Robust
SpotChecker weighs just 3.2 kg (7.05 lb), is battery operated and is sealed to IP65. It features hot swap battery exchange to ensure continuous operation. Battery charging can be done with batteries inside or outside of the instrument, using an external charger. Portability allows inspection to be carried out at the place of welding or on the production line, with no need to transport components to designated inspection stations. As a result, more inspections can be carried out within the same time frame, which means increased productivity.
Easy-to-Use
SpotChecker does not require intensive training but offers the advantage of an “expert” system for people less qualified in weld inspection. Its ergonomically designed operator interface features an 8.4” LCD touch screen, six programmable function keys and twin track balls, so that it can be operated simply and efficiently in the most restricted of testing locations.
Connectivity
The flaw detector can be connected to external periphery devices such as mouse, keyboard and printer by USB. The instrument can also be connected to a PC wirelessly by WLAN or Bluetooth for data
up-and down-load.
A non-directional, user-friendly remote control, equipped with programmable functions, provides extended flexibility. Intelligent dialog probes, whose data is automatically recognized and loaded, ensure 100-percent documentation accuracy and increased test reliability in spot weld inspection.
SPECS SpotChecker
Enclosure
Storage Temperature
-20 to 60 °C (-4 to 140°F)
Operating Temperature
0 to 45 °C (32 to 113°F)
Dimensions
W 225 × H 314 × D 94 mm (W 8.85 x H 12.36 x D 3.7”)
Weight
Approx. 3.2 kg (7.05 lb) (Incl. Batteries)
Protection Rating
IP 65
Shock Resistance
According to EN 600 68-2-27
Vibration Resistance
According to IEC 600 68-2-6 Fc
Display
8.4” TFT, SVGA, Touchscreen
Control Devices
2 × Trackball with 2 Buttons Each, 6 Function Keys, Touchscreen
Connections
Probes
2 × LEMO 00 Triax
Power Supply Unit
1 × LEMO 0S, 4-pin Socket
Network
1 × RJ45
USB
4 × USB Type A Socket, 1 × USB Type B Socket
Optional
WLAN, Bluetooth
Power Supply
Operating Voltage
15 V DC
Power Consumption
Approx. 22 W
Batteries
2 × Lithium-Ion 10.8 V, 4.8 Ah
Operating Time
Approx. 4.0 h with 2 Batteries
Power Supply Unit
External Power Supply Unit 100 ... 230 V AC, Max. 70 W
Ultrasound
Pulser Type
Spike Pulse
Pulse Repetition Frequency (PRF)
Max. 1,000 Hz, No Continuous Pulse Sequence
Voltage
Max. 400 V
Initial Pulse Rise Time
< 15 ns
Damping
50 Ohm
Settings and Evaluation
Calibration Ranges
Min. 0 to 2.5 mm (0 to 0.1”) (steel); max. 0 to 9,700 mm (0 to 381”) (steel)
Sound Velocity Range
500 ... 15,000 m/s (0.02 ... 0.59 “/μs) Integrated, Editable Material Table
Pulse Shift
-10 to 1,500 mm (-0.39 to 50”) (steel)
Probe Delay
0 to 100 μs
Frequency Range
2 to 20 MHz (–3 dB)
Gain
110 dB, Adjustable in Steps of 0.5/1/2/6 dB
Rectification
Full-Wave
Monitor Gates
2 Independent Monitor Gates, Adjustable over the Entire Maximum Calibration Range;
Evaluation on the Basis of A-scan at Display Refresh Rate
Distance Measurement- Initial Pulse and Measurement Point in Gate A or B
- Measuring Points: Gate B – Gate A (Differential Measurement)
Measurement Resolution
Sound Path/Time of Flight: up to 12.6 mm: 0.01 mm; Otherwise 0.2 % of Display Width
Amplitude
0.5 % Screen Height or 0.2 dB
A-scan Digitization
1,024 × 1,024 Pixels
Display Freeze
Static A-scan Freeze, Dynamic A-scan Freeze (Freeze Box)
Echo Comparison
Simultaneous Display of the Currently Active Signal and a Stored A-scan
Dialog Languages
German, English, French, Spanish, Italian, Chinese, Japanese
Units
mm

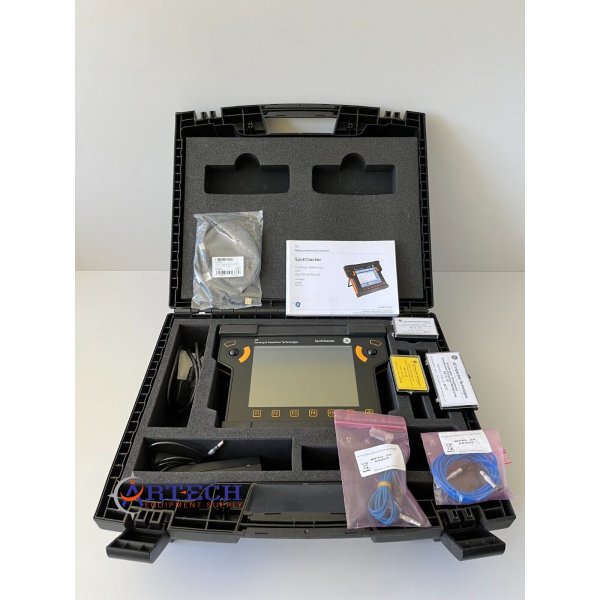

Includes :
General Electric SpotChecker Weld Flaw Detector
General Electric G20MNX NDT Probe D3,6mm
General Electric Lemo Cable
Power Supply
Some Protective Membranes ( ES 12/01 ES 12/02 ), the packages are not full!
Manual
Disc for Application Software, there is no USB stick for license!
USB cable
Transportation case
