USED Easy-Laser E420 Shaft Alignment System - Calibrated
The Easy-Laser® E420 represents a leap forward in entry level laser systems for shaft alignment and can be used in the toughest environments. The Easy-Laser® E420 represents a leap forward in entry level laser systems for shaft alignment. The new E420 makes aligning various sizes of wind turbines gear boxes and generators a breeze -and with the new special brackets available for alignment with locked rotors, your alignment jobs are even more safe.
$1,140.00
The Easy-Laser E420 represents a leap forward in entry level laser systems for shaft alignment. The new E420 makes aligning various sizes of wind turbines gear boxes and generators a breeze -and with the new special brackets available for alignment with locked rotors, your alignment jobs are even more safe.
The rugged machine has an IP65-rated design built to work in the toughest environments. The E420 features pre-mounted units and an Easy-Laser® barcode scanner for fast operation. The large 5.7″ colour display makes it simple to gather all measurement data and the built in Bluetooth wireless technology means you won’t be tangled up with cords and wires getting in the way of your job.
The Easy-Laser® E420 is set up with a range of Smart Functions to make your measurement and alignment run faster and more smoothly.
EasyTurn – allows you to begin the measurement process from anywhere on the turn.
Soft Foot Check – ensures that the machine is positioned evenly on all feet and letting you know where adjustment is needed
Thermal Growth Compensation – calculates the appropriate shims and values required to make adjustments where temperature expansion has occurred
Tolerance Check – Measurement results can be checked against pre-defined tolerance tables or values you determine yourself
Vertical/Flange-Mounted Machines – This program is used for alignment of vertical and flange-mounted machines, and displays centre offset, angular error and shim value at each bolt
Horizontal Machines – Simple alignment of horizontally mounted machinery including pumps, motors, gearboxes and compressors
Values – Digital Dial Indicator – The values program can be used with the standard equipment when measuring with dial gauges and to check bearing play or shaft load
Measurement Value Filter – An electronic filter function used to filter out interference such as vibrations and air turbulence from adjacent machines that could otherwise result in poor measuring conditions
Multiple Sets Of Feet – adjusts the unit to measure just about any type of machine design
Live-Any-Angle 360° – lets you adjust machines in real time with the measuring units positioned anywhere on the shaft.
SPECS :
System
Relative humidity
10–95%
Weight (complete system)
6.3 kg [13.9 lbs]
Carrying case WxHxD
500x415x170 mm [19.7x16.3x6.7"]
Measuring units ELM20 / ELS20
Type of detector
TruePSD 20 mm [0.78"]
Communication
BT Wireless technology
Operating time
>4 h
Resolution
0.01 mm [0.5 mils]
Measurement accuracy
± 5 µm ± 1%
Measurement range
Up to 3 m [10 feet]
Type of laser
Diode laser
Laser wavelength
630–680 nm
Laser class
Safety class 2
Laser output
<1 mW
Electronic inclinometer
0.1° resolution
Thermal sensors
-20–60 °C
Environmental protection
IP class 65
Operating temperature
-10–50 °C
Housing material
Anodized aluminium / ABS plastics
Dimensions
WxHxD: 69.0x61.5x41.5 mm [2.72x2.42x1.63"]
Weight
176 g [6.2 oz]
Display unit
Type of display/size
VGA 5.7" colour screen, backlit LED
Displayed resolution
0.01 mm / 0.5 thou
Internal battery
(fixed) Heavy duty Li Ion chargeable
Operating time
Approx. 30 hours (at typical user cycle)
Operating temperature
-10–50 °C
Connections
USB A, Charger
Communication
BT Wireless technology
Internal memory
>2000 measurements can be saved
Help functions
Calculator, Unit converter
Environmental protection
IP class 65
Housing material
PC/ABS TPE
Dimensions
WxHxD: 250x175x63 mm [9.8x6.9x2.5"]
Weight
910 g [2.0 lbs]
Cable
Charging cable
(splitter cable) Length 1 m [39.4"]
Brackets etc.
Shaft brackets
Type: V-fixture for chain, width 18 mm [0.7"].
Shaft diameters: 20–450 mm [0.8"–17.7"]
Material: anodised aluminium
Rods
Length: 120 mm, 60 mm [4.72", 2.36"] (extendable)
Material: Stainless steel
EasyLink Data base software
System requirements
Windows® XP, Vista, 7, 8, 10. For the export functions,
Excel 2003 or newer must be installed on the PC.

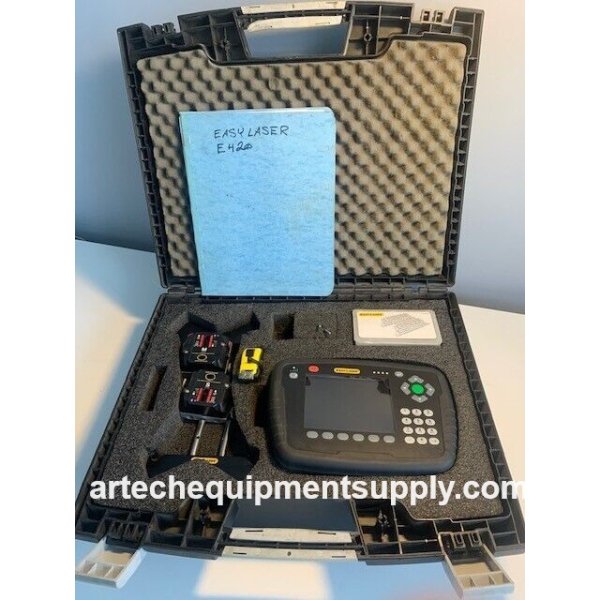

Contains :
1 Measuring unit M
1 Measuring unit S
1 Display unit
2 Shaft brackets with chains
2 Extension chains
4 Rods 120 mm [4.72"]
4 Rods 60 mm [2.36"]
1 Measuring tape 3 m [9.8']
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 USB memory with manuals and EasyLink™ PC software
1 Carrying case
Also you can check product : USED Easy-Laser E540 Shaft Alignment System - Calibrated
