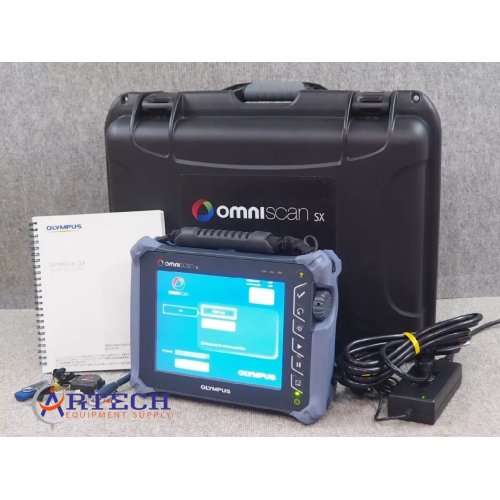

The Olympus OmniScan SX is a high-performance phased array ultrasonic flaw detector, ideal for advanced NDT applications. With a high-resolution 8.4” color touchscreen, 16 channels, and a frequency range of 0.5 to 25 MHz, it ensures precise flaw detection and material assessment. It offers rapid data acquisition with a pulse repetition frequency of up to 1,000 Hz and features a 64-element phased array for superior detection.
The Olympus Vanta M Series XRF Analyzer is an advanced handheld elemental analysis device that surpasses its peers in the Vanta XRF analyzer series with its exceptional performance in applications with the lowest limits of detection, or LODs. Vanta M Series models are equipped with sensitive large-area silicon drift detectors and 50 kV X-ray tubes with a rhodium (Rh) anode. Ideal for scrap sorting, PMI, geochemistry, mining, jewelry ID, soil analysis and an array of other applications, the Vanta M Series adheres to IP65 and MIL-STD 810G standards. Features include SmartSort, which shortens or lengthens test time based on material, and real-time grade matching notifications.
The Vanta handheld XRF analyzer series provides rapid, accurate elemental analysis and alloy ID in two powerful models. The Vanta Max analyzer offers the series’ highest analytical capabilities for robust applications, including mining exploration, mineral analysis, soil testing, and environmental analysis. The Vanta Core analyzer is the standard choice for fast alloy ID. Comfortable to hold, easy to use, and durable, the analyzers maximize efficiency in the field and lab.
The EPOCH 650 Digital Ultrasonic Flaw Detector combines Olympus’ industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 650 flaw detector’s blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use. The EPOCH 650 is designed for use in nearly any inspection environment, from bench top testing in a laboratory to extreme outdoor and hazardous conditions.
NEW Olympus Nortec 600D Eddy Current Flaw Detector (Nortec 600D)
Olympus converges its latest advancements in high-performance digital circuitry and eddy current flaw detection into one compact and durable portable unit—the new NORTEC 600. With its crisp and vivid 5.7 inch VGA display and true full-screen mode, the NORTEC 600 is capable of producing highly visible and contrasting eddy current signals in any lighting condition.
The redesigned interface of the NORTEC 600 borrows the intuitive, knob-operated navigation of its NORTEC predecessors and combines it with the simple menu structure and highly efficient direct-access keys of other popular Olympus instruments. Available in four versatile models, the NORTEC 600 offers a wide range of innovative functionalities, including an Application Selection menu, an all-in-one display, real-time readings, and signal calibration in Freeze mode, ensuring that inspections are quick and easy for any level of operator.
Reliable and Robust
Based on an already field-proven instrument case, the NORTEC 600 is built for endurance in harsh field conditions. Its casing’s durability and resistance to extreme weather makes the NORTEC 600 an instrument you can trust for any eddy current inspection job.
Features
Designed to meet the requirements of IP66.
EN-15548 compliant.
Long battery life (up to 10 hours).
Bright, 5.7 inch (14,5 cm) VGA display.
Full-screen option in any display mode.
Improved filters for rotary scanner mode.
Intuitive interface with Application Selection presets.
All-settings configuration page.
10 Hz to 12 MHz frequency capacity.
Automatic internal balancing (BNC connector).
Up to two real-time readings.
True automatic mixing.
Storage capacity of up to 500 files (program and data).
On-board file preview.
Two Probe Connectors
All models of the NORTEC 600 come with the standard LEMO 16-way universal connector, as well as a BNC connector for absolute probes. Simply select the connector in the instrument interface. When reading from the BNC connector, the instrument features automatic internal balancing for hassle-free operation.
The 16-way LEMO connector also supports the PowerLink NORTEC technology, which features automatic probe recognition and instrument presets for quicker setups.
Compatible with Current Procedures and Other Manufacturers
To simplify inspection, the NORTEC 600 includes all the legacy modes and layouts used in existing NORTEC-specified procedures, as well as those used by many other equipment manufacturers. Standard impedance plane view, sweep mode (strip chart), split screens, adjustable null point, crosshairs, improved filter response, reference signal display, and several other useful features are all part of the NORTEC 600 package.
Offering compatibility with many other probe and rotary scanner manufacturers, the NORTEC 600’s accessories include cables and adaptors such as a 12-way LEMO, an 11-way Fischer, and more. The proper adaptor or scanner cable make it possible to benefit from all the outstanding capabilities of the NORTEC 600, without investing heavily in probes and accessories.
One of the Most Brilliant Displays in the Industry
Vibrant VGA Display
The NORTEC® 600 has one of the most brilliant displays available on the portable eddy current flaw detector market. The unique brightness, resolution, and definition of its 5.7 inch VGA display makes it possible to interpret eddy current signals at a distance. The user-selectable color schemes ensure that the display is equally clear and easy-to-read whether you are using the NORTEC 600 indoors or outside.
True Full-Screen Display
In addition to impressive size and brightness, the NORTEC 600’s VGA display also features a new full-screen mode that can be activated at the touch of a key.
Available for all applications and in all display modes, the full-screen mode really comes in handy when reading signals over an extended period of time.
Depending on your NORTEC 600 model, you can choose between the following displays:
single impedance plane.
dual impedance plane.
sweep (strip chart).
split screen (sweep impedance).
waterfall.
dual impedance plane.
all-in-one display featuring up to 3 configurable traces.
Easy Integration of NORTEC 600
The NORTEC 600 merges seamlessly into any integrated eddy current detection system. Its numerous software and hardware features ensure that the instrument is capable of performing consistent flaw detection in industrial environments. The NORTEC 600 specifications and functionalities were designed with the integrator in mind.
Designed to meet the requirements of IP66.
-10°C to 50°C operating temperature range.
Continuous null filter.
Strip chart view with sweep alarm.
6 kHz measurement rate.
Remote Control from NORTEC PC.
Alarm outputs.
Analog outputs.
Digital inputs.
SPECS :
Housing
Overall dimensions (width × height × depth)
236 mm × 167 mm × 70 mm
Weight
1.7 kg, including lithium-ion battery.
Standards or directives
EN-15548, CE, WEEE, FCC (USA), IC (Canada), RoHS (China), RCM (Australia and New Zealand).
Power requirements
AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz.
Input and Outputs
One USB 2.0 peripheral port, one standard VGA analog output port, one 15-pin I/O port (male) with 6 analog outputs, 3 alarm outputs.
Environmental conditions
Operating temperature
–10 °C to 50 °C
Storage temperature
0°C to 50°C (with batteries) and -20°C to 70°C (without batteries).
IP rating
Designed to meet requirements of IP66.
Battery
Battery type
Single lithium-ion rechargeable battery or optional AA-size alkaline batteries (in 8-cell holder).
Battery life
Up to 10 hours for standard operation; 6 hours to 8 hours when operating rotary scanners.
Display
Display size (W × H, diagonal)
117.4 mm × 88.7 mm, 146.3 mm
Display type
Full VGA (640 × 480 pixels) color, transflective LCD (liquid crystal display).
Screen modes
Normal or Full screen, 8 color schemes.
Grids and display tools
Choice of 5 grids; crosshairs (single trace displays only).
Connectivity and memory
PC software
NORTEC PC software, included in base NORTEC 600 kit. NORTEC PC allows viewing saved files and printing reports.
Data storage
500 traces of 120 s max featuring user-selectable on-board preview.
Interface
Languages
English, Spanish, French, German, Italian, Japanese, Chinese, Russian, Portuguese, Polish, Dutch, Czech, Hungarian, Swedish, and Norwegian.
Applications
Application Selection menu for easy and rapid configuration. Automatic lift-off key.
Real-Time Readings
Choice of up to 2 real-time readings measuring signal characteristics (selection of 5 amplitude measurements and 1 angle measurement).
Eddy Current Specifications (all NORTEC models)
Probe types
Absolute and differential in either bridge or reflection configuration. The instrument is fully compatible with NORTEC PowerLink probes, as well as other main probe and accessory suppliers.
Probe connectors
16-pin LEMO and BNC featuring internal automatic balancing for BNC connector (absolute probes).
Frequency range
10 Hz to 12 MHz
Gain
0 dB to 100 dB in 0.1 or 1 dB increments.
Rotation
0° to 359.9° in 0.1° or 1° increments.
Sweep
Variable from 0.005 s to 10 s per division
(total of 13.3 divisions with FINE grid).
Filters
Low-pass: 10 Hz to 2000 Hz and wide band. High-pass: off or 5 Hz to 1000 Hz, user-selectable in constant “figure 6” or “figure 8” filter type. Continuous null (low-frequency HP filter): 0.2 Hz, 0.5 Hz, 1.0 Hz.
Probe drive
LOW, MEDIUM, and HIGH (2 V, 5 V, 8 V).
Display erase, persistence
Display erase (0.1 s to 60 s), persistence (0.1 s to 10 s)
Available alarm types
3 simultaneous alarms. Choices include BOX (rectangle), POLAR (circle), SECTOR (pie), SWEEP (time-based), CONDUCTIVITY, and COATING THICKNESS.
Conductivity (NORTEC 600C, NORTEC 600S, and NORTEC 600D)
Frequency
60 kHz or 480 kHz
Digital conductivity specification
Digital conductivity display from 0.9% to 110% IACS or 0.5 to 64 MS/m. Accuracy within ±0.5% IACS from 0.9% to 65% IACS and within ±1.0% of values over 62%. Meets or exceeds BAC 5651 specifications.
Non-conductive coating thickness
Can measure non-conductive coating thickness from 0 mm to 0.648 mm. Accuracy of 0.025 mm (±0.001 in.) over a 0 mm to 0.64 mm range.
Scanners (NORTEC 600S and NORTEC 600D)
Scanner compatibility
Operates Olympus scanners (MiniMite, SpitFire, RA-2000, and PS-5) and other major supplier scanners, from 120 RPM to 3000 RPM.
Dual Frequency (NORTEC 600D)
Frequency adjustment (dual frequency mode)
Two fully independent frequencies, operating in simultaneous injection.
MIX options
F1 - F2, F1 F2, and automatic true mixing.
Includes:
Olympus NORTEC 600D Dual Frequency
Calibration certificate
Charger/adaptor
AC power cord
Getting Started leaflet
NORTEC 600D User’s Manual and PC interface program on CD-ROM
Universal PowerLink eddy current probe cable
MicroSD memory card, 2 GB (1 internal, 1 external)
USB 2.0 (mini-AB) to PC cable
67 watt-hour battery for 600 Series products, 10.8 V, 6.2 Ah, 67 Wh
AA battery holder for emergency use
Factory-installed hand strap on left side of NORTEC 600D instrument
Instrument transport case
Olympus NEC-8196L Weld Inspection Kit

Also you can check product : USED Olympus Nortec 600D Eddy Current Flaw Detector
The redesigned interface of the NORTEC 600 borrows the intuitive, knob-operated navigation of its NORTEC predecessors and combines it with the simple menu structure and highly efficient direct-access keys of other popular Olympus instruments. Available in four versatile models, the NORTEC 600 offers a wide range of innovative functionalities, including an Application Selection menu, an all-in-one display, real-time readings, and signal calibration in Freeze mode, ensuring that inspections are quick and easy for any level of operator.
Reliable and Robust
Based on an already field-proven instrument case, the NORTEC 600 is built for endurance in harsh field conditions. Its casing’s durability and resistance to extreme weather makes the NORTEC 600 an instrument you can trust for any eddy current inspection job.
Features
Designed to meet the requirements of IP66.
EN-15548 compliant.
Long battery life (up to 10 hours).
Bright, 5.7 inch (14,5 cm) VGA display.
Full-screen option in any display mode.
Improved filters for rotary scanner mode.
Intuitive interface with Application Selection presets.
All-settings configuration page.
10 Hz to 12 MHz frequency capacity.
Automatic internal balancing (BNC connector).
Up to two real-time readings.
True automatic mixing.
Storage capacity of up to 500 files (program and data).
On-board file preview.
Two Probe Connectors
All models of the NORTEC 600 come with the standard LEMO 16-way universal connector, as well as a BNC connector for absolute probes. Simply select the connector in the instrument interface. When reading from the BNC connector, the instrument features automatic internal balancing for hassle-free operation.
The 16-way LEMO connector also supports the PowerLink NORTEC technology, which features automatic probe recognition and instrument presets for quicker setups.
Compatible with Current Procedures and Other Manufacturers
To simplify inspection, the NORTEC 600 includes all the legacy modes and layouts used in existing NORTEC-specified procedures, as well as those used by many other equipment manufacturers. Standard impedance plane view, sweep mode (strip chart), split screens, adjustable null point, crosshairs, improved filter response, reference signal display, and several other useful features are all part of the NORTEC 600 package.
Offering compatibility with many other probe and rotary scanner manufacturers, the NORTEC 600’s accessories include cables and adaptors such as a 12-way LEMO, an 11-way Fischer, and more. The proper adaptor or scanner cable make it possible to benefit from all the outstanding capabilities of the NORTEC 600, without investing heavily in probes and accessories.
One of the Most Brilliant Displays in the Industry
Vibrant VGA Display
The NORTEC® 600 has one of the most brilliant displays available on the portable eddy current flaw detector market. The unique brightness, resolution, and definition of its 5.7 inch VGA display makes it possible to interpret eddy current signals at a distance. The user-selectable color schemes ensure that the display is equally clear and easy-to-read whether you are using the NORTEC 600 indoors or outside.
True Full-Screen Display
In addition to impressive size and brightness, the NORTEC 600’s VGA display also features a new full-screen mode that can be activated at the touch of a key.
Available for all applications and in all display modes, the full-screen mode really comes in handy when reading signals over an extended period of time.
Depending on your NORTEC 600 model, you can choose between the following displays:
single impedance plane.
dual impedance plane.
sweep (strip chart).
split screen (sweep impedance).
waterfall.
dual impedance plane.
all-in-one display featuring up to 3 configurable traces.
Easy Integration of NORTEC 600
The NORTEC 600 merges seamlessly into any integrated eddy current detection system. Its numerous software and hardware features ensure that the instrument is capable of performing consistent flaw detection in industrial environments. The NORTEC 600 specifications and functionalities were designed with the integrator in mind.
Designed to meet the requirements of IP66.
-10°C to 50°C operating temperature range.
Continuous null filter.
Strip chart view with sweep alarm.
6 kHz measurement rate.
Remote Control from NORTEC PC.
Alarm outputs.
Analog outputs.
Digital inputs.
SPECS :
Housing
Overall dimensions (width × height × depth)
236 mm × 167 mm × 70 mm
Weight
1.7 kg, including lithium-ion battery.
Standards or directives
EN-15548, CE, WEEE, FCC (USA), IC (Canada), RoHS (China), RCM (Australia and New Zealand).
Power requirements
AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz.
Input and Outputs
One USB 2.0 peripheral port, one standard VGA analog output port, one 15-pin I/O port (male) with 6 analog outputs, 3 alarm outputs.
Environmental conditions
Operating temperature
–10 °C to 50 °C
Storage temperature
0°C to 50°C (with batteries) and -20°C to 70°C (without batteries).
IP rating
Designed to meet requirements of IP66.
Battery
Battery type
Single lithium-ion rechargeable battery or optional AA-size alkaline batteries (in 8-cell holder).
Battery life
Up to 10 hours for standard operation; 6 hours to 8 hours when operating rotary scanners.
Display
Display size (W × H, diagonal)
117.4 mm × 88.7 mm, 146.3 mm
Display type
Full VGA (640 × 480 pixels) color, transflective LCD (liquid crystal display).
Screen modes
Normal or Full screen, 8 color schemes.
Grids and display tools
Choice of 5 grids; crosshairs (single trace displays only).
Connectivity and memory
PC software
NORTEC PC software, included in base NORTEC 600 kit. NORTEC PC allows viewing saved files and printing reports.
Data storage
500 traces of 120 s max featuring user-selectable on-board preview.
Interface
Languages
English, Spanish, French, German, Italian, Japanese, Chinese, Russian, Portuguese, Polish, Dutch, Czech, Hungarian, Swedish, and Norwegian.
Applications
Application Selection menu for easy and rapid configuration. Automatic lift-off key.
Real-Time Readings
Choice of up to 2 real-time readings measuring signal characteristics (selection of 5 amplitude measurements and 1 angle measurement).
Eddy Current Specifications (all NORTEC models)
Probe types
Absolute and differential in either bridge or reflection configuration. The instrument is fully compatible with NORTEC PowerLink probes, as well as other main probe and accessory suppliers.
Probe connectors
16-pin LEMO and BNC featuring internal automatic balancing for BNC connector (absolute probes).
Frequency range
10 Hz to 12 MHz
Gain
0 dB to 100 dB in 0.1 or 1 dB increments.
Rotation
0° to 359.9° in 0.1° or 1° increments.
Sweep
Variable from 0.005 s to 10 s per division
(total of 13.3 divisions with FINE grid).
Filters
Low-pass: 10 Hz to 2000 Hz and wide band. High-pass: off or 5 Hz to 1000 Hz, user-selectable in constant “figure 6” or “figure 8” filter type. Continuous null (low-frequency HP filter): 0.2 Hz, 0.5 Hz, 1.0 Hz.
Probe drive
LOW, MEDIUM, and HIGH (2 V, 5 V, 8 V).
Display erase, persistence
Display erase (0.1 s to 60 s), persistence (0.1 s to 10 s)
Available alarm types
3 simultaneous alarms. Choices include BOX (rectangle), POLAR (circle), SECTOR (pie), SWEEP (time-based), CONDUCTIVITY, and COATING THICKNESS.
Conductivity (NORTEC 600C, NORTEC 600S, and NORTEC 600D)
Frequency
60 kHz or 480 kHz
Digital conductivity specification
Digital conductivity display from 0.9% to 110% IACS or 0.5 to 64 MS/m. Accuracy within ±0.5% IACS from 0.9% to 65% IACS and within ±1.0% of values over 62%. Meets or exceeds BAC 5651 specifications.
Non-conductive coating thickness
Can measure non-conductive coating thickness from 0 mm to 0.648 mm. Accuracy of 0.025 mm (±0.001 in.) over a 0 mm to 0.64 mm range.
Scanners (NORTEC 600S and NORTEC 600D)
Scanner compatibility
Operates Olympus scanners (MiniMite, SpitFire, RA-2000, and PS-5) and other major supplier scanners, from 120 RPM to 3000 RPM.
Dual Frequency (NORTEC 600D)
Frequency adjustment (dual frequency mode)
Two fully independent frequencies, operating in simultaneous injection.
MIX options
F1 - F2, F1 F2, and automatic true mixing.
Includes:
Olympus NORTEC 600D Dual Frequency
Calibration certificate
Charger/adaptor
AC power cord
Getting Started leaflet
NORTEC 600D User’s Manual and PC interface program on CD-ROM
Universal PowerLink eddy current probe cable
MicroSD memory card, 2 GB (1 internal, 1 external)
USB 2.0 (mini-AB) to PC cable
67 watt-hour battery for 600 Series products, 10.8 V, 6.2 Ah, 67 Wh
AA battery holder for emergency use
Factory-installed hand strap on left side of NORTEC 600D instrument
Instrument transport case
Olympus NEC-8196L Weld Inspection Kit
Also you can check product : USED Olympus Nortec 600D Eddy Current Flaw Detector
Olympus converges its latest advancements in high-performance digital circuitry and eddy current flaw detection into one compact and durable portable unit—the new NORTEC® 600. With its crisp and vivid 5.7 inch VGA display and true full-screen mode, the NORTEC 600 is capable of producing highly visible and contrasting eddy current signals in any lighting condition.
The redesigned interface of the NORTEC 600 borrows the intuitive, knob-operated navigation of its NORTEC predecessors and combines it with the simple menu structure and highly efficient direct-access keys of other popular Olympus instruments.
