X100 is a small and compact terrestrial laser scanner that is quick and easy to use. Its multi-line lidar technology and ability to achieve complete coverage of the surrounding area enable it to calculate 3D models for a wide range of applications and scenarios, both outdoors and indoors.
The scanner comes with its own X100app field app, making it easy to control the device. Thanks to the scan converter, the data is compatible with Cube-3d and Stonex Reconstructor, as well as third-party software. The X100 is the perfect tool for quick topographic surveys, scans of building facades and data collection for floor plans; a quick 360° scan takes as few as 45 seconds.
X120GO has an integrated structure design with a built-in control and storage system and built-in replaceable lithium batteries. Once pressed the start button, X120GO can start operations immediately, making data acquisition more efficient and convenient. X120GO can use GOapp to check and manage projects which will be updated and displayed synchronously. Real-time SLAM mapping and preview can be achieved via GOapp.
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time. XH120 is an handheld 3D laser scanner based on STONEX SLAM technology. Boost your productivity reducing on site capturing time and post processing workload!
X150 is a robust and easy-to-use scanner for quick surveys up to 150 m. The multi-line full dome Lidar technology allows computing 3D models for a wide range of applications. X150 comes with it’s own processing software and is also compatible with Stonex Cube-scan and Stonex Reconstructor software. A perfect tool for fast topographic grade surveys and indoor floor maps.
X70GO is a real-time 3D model reconstruction device which integrates inertial navigation module, high performance computer and storage system. It is equipped with a 360° rotating head, which, combined with the SLAM algorithm, generates high-precision point cloud data. A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.
STONEX X300 is a 3D Laser Scanner designed to provide accurate data every time and for any project.
The ease of use, reliability, flexibility and price make X300 a highly competitive product, now further improved with new features. The X300 File Manager tool allows you to convert the data collected with the X300 Laser Scanner into Stonex Reconstructor file format or other standard formats. The files obtained can be used directly in third party software, such as CAD, forensic analysis or road accident analysis.
NEW Stonex X100 3D Laser Scanner (X100)
X100 Laser Scanner
Light & Fast
X100 is a small and compact terrestrial laser scanner that is quick and easy to use. Its multi-line lidar technology and ability to achieve complete coverage of the surrounding area enable it to calculate 3D models for a wide range of applications and scenarios, both outdoors and indoors.
The scanner comes with its own X100app field app, making it easy to control the device. Thanks to the scan converter, the data is compatible with Cube-3d and Stonex Reconstructor, as well as third-party software.
The X100 is the perfect tool for quick topographic surveys, scans of building facades and data collection for floor plans; a quick 360° scan takes as few as 45 seconds. The built-in panoramic camera allows you to add true colour to your scans.
X100 is the perfect instrument for efficient and precise work in a wide range of applications:
Land & Excavation
Architecture & Real Estate
Emergency Management
SMALL AND LIGHT
The scanner can be easily used by a single person thanks to its small size and weight of approximately 3 kg.
WIRELESS CONTROL
Through the dedicated APP it is possible to control the device remotely. Scan with one click and check quality via real-time preview.
PANORAMIC HDR CAMERA
Add colour to your scan.
SELF CALIBRATING
± 5 degrees tilt supplement angle for precise leveling. Monitor scanner leveling via electronic bubble available on the app.
FAST SCAN & DOWNLOAD
A 360° one-stop scan requires only 45 s. Data are saved on USB dongle directly. Post-processing begins after field work!
SPECS :
Application
Distinguishable features
320.000 points/s
Main applications
Land & Excavation, Architecture & Real Estate, Emergency Management
Peripherals
External Camera
Y
User interface
Tablet, Smartphone
Specifications
360° HDR 18MP
Operation Characteristics
Operating temperature: min. [°C]
0
Operating temperature: max. [°C]
40
Control panel built in
Y
IP Rating
54
Dual Axis Compensation
Y
Scanning Characteristics
Max. vertical field of view [deg]
268
Max. horizontal field of view [deg]
360
Min. scan duration with typical resolution [min]
0.75
Scan duration with highest resolution [min]
3.75
Software Functionality
Software name
X100app
Real time visualization during scanning
Y
Laser Ranger
Wavelength [nm]
905
Laser safety classification
Class 1
Min. Range [m]
0.5
Max. Range [m]
120
Water/Dust Protection
Y
Power
Scan time per battery [h]
3
General
Year of introduction
2022
Height [m]
0.275
Depth [m]
0.113
Width [m]
0.125
Total Weight [kg]
3,2
Includes:
X100 Scanner
Panoramic Camera
2 Batteries
Charger adapter
Data Cable
Carbon Fiber Tripod
Flight Case trolley
X100 Manager
X100 App
Also you can check product : NEW Stonex X300 3D Laser Scanner
Light & Fast
X100 is a small and compact terrestrial laser scanner that is quick and easy to use. Its multi-line lidar technology and ability to achieve complete coverage of the surrounding area enable it to calculate 3D models for a wide range of applications and scenarios, both outdoors and indoors.
The scanner comes with its own X100app field app, making it easy to control the device. Thanks to the scan converter, the data is compatible with Cube-3d and Stonex Reconstructor, as well as third-party software.
The X100 is the perfect tool for quick topographic surveys, scans of building facades and data collection for floor plans; a quick 360° scan takes as few as 45 seconds. The built-in panoramic camera allows you to add true colour to your scans.
X100 is the perfect instrument for efficient and precise work in a wide range of applications:
Land & Excavation
Architecture & Real Estate
Emergency Management
SMALL AND LIGHT
The scanner can be easily used by a single person thanks to its small size and weight of approximately 3 kg.
WIRELESS CONTROL
Through the dedicated APP it is possible to control the device remotely. Scan with one click and check quality via real-time preview.
PANORAMIC HDR CAMERA
Add colour to your scan.
SELF CALIBRATING
± 5 degrees tilt supplement angle for precise leveling. Monitor scanner leveling via electronic bubble available on the app.
FAST SCAN & DOWNLOAD
A 360° one-stop scan requires only 45 s. Data are saved on USB dongle directly. Post-processing begins after field work!
SPECS :
Application
Distinguishable features
320.000 points/s
Main applications
Land & Excavation, Architecture & Real Estate, Emergency Management
Peripherals
External Camera
Y
User interface
Tablet, Smartphone
Specifications
360° HDR 18MP
Operation Characteristics
Operating temperature: min. [°C]
0
Operating temperature: max. [°C]
40
Control panel built in
Y
IP Rating
54
Dual Axis Compensation
Y
Scanning Characteristics
Max. vertical field of view [deg]
268
Max. horizontal field of view [deg]
360
Min. scan duration with typical resolution [min]
0.75
Scan duration with highest resolution [min]
3.75
Software Functionality
Software name
X100app
Real time visualization during scanning
Y
Laser Ranger
Wavelength [nm]
905
Laser safety classification
Class 1
Min. Range [m]
0.5
Max. Range [m]
120
Water/Dust Protection
Y
Power
Scan time per battery [h]
3
General
Year of introduction
2022
Height [m]
0.275
Depth [m]
0.113
Width [m]
0.125
Total Weight [kg]
3,2
Includes:
X100 Scanner
Panoramic Camera
2 Batteries
Charger adapter
Data Cable
Carbon Fiber Tripod
Flight Case trolley
X100 Manager
X100 App
Also you can check product : NEW Stonex X300 3D Laser Scanner
X100 is a small and compact terrestrial laser scanner that is quick and easy to use. Its multi-line lidar technology and ability to achieve complete coverage of the surrounding area enable it to calculate 3D models for a wide range of applications and scenarios, both outdoors and indoors.
The scanner comes with its own X100app field app, making it easy to control the device. Thanks to the scan converter, the data is compatible with Cube-3d and Stonex Reconstructor, as well as third-party software. The X100 is the perfect tool for quick topographic surveys, scans of building facades and data collection for floor plans; a quick 360° scan takes as few as 45 seconds.

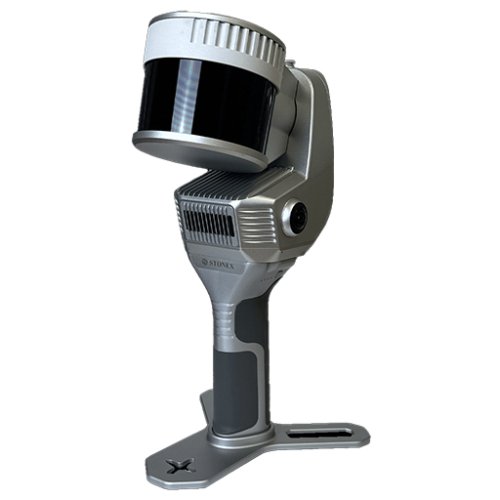

NEW Stonex X120GO SLAM 3D Laser Scanner (Stonex X120GO)
X120GO SLAM Laser Scanner
Accurate & Versatile
The system has a 360° rotating head, which can generate a 360°x270° point cloud coverage. Combined with the industry-level SLAM algorithm, it can obtain high-precision three-dimensional point cloud data of the surrounding environment without light and GPS. Equipped with three 5MP cameras to generate a 200°FOV horizontal and 100°FOV vertical, capable of synchronously obtaining texture information and producing colour point clouds and partial panoramic images.
X120GO can use GOapp to check and manage projects which will be updated and displayed synchronously. Real-time SLAM mapping and preview can be achieved via GOapp.
GOpost can perform post-processing of collected data, generate high-precision and high-definition color point clouds, produce partial panoramic images, display point cloud and perform optimization processing.
X120GO has an integrated structure design with a built-in control and storage system and built-in replaceable lithium batteries. Once pressed the start button, X120GO can start operations immediately, making data acquisition more efficient and convenient.
RAPIDITY AND REDUCED WORKLOAD
No more multiple scan station, just move around the scene to collect the entire 3D point cloud, without time-consuming cloud to cloud alignment. Download the full data right after the capture.
FLEXIBILITY
Combine indoor & outdoor data, even in the most demanding environments.
REAL TIME PREVIEW
See your scanning progress in real time using the dedicated Android App.
AUTOMATIC CONTROL POINT MEASUREMENT
When capturing data, X120GO is able to collect reference points too. They can be matched with known control points to georeference the scans.
INTEGRATED CAMERAS
Three integrated 5MP cameras are able to cover the wide field of view of the scanner, obtaining coloured point cloud and panoramic images.
DEDICATED ACCESSORIES
X120GO comes with a dedicated range of accessories
Specs :
Performance
Max Range
120 m
Min Range
0.5 m
Relative Accuracy
Up to 6 mm (in controlled environment)
Vertical Resolution
16 channels
Scanning Point Frequency
320,000 pts/s
Field of View
360° x 270°
Laser Class
Class 1
Echo Strength
8 bits
Camera
Number of Cameras
3 (5 MP each – total 15 MP)
Cameras FOV
200°x100°
Semi-spherical
RGB Point Cloud
Supported
System
Memory
32GB (expandable)
Operation Mode
Realtime visualization (Android 8 or above)
Communication
NFC, WiFi
Electrical
Power Supply
25W
Supply Voltage
20-30V
Operating Time
5h (2 batteries set – 2.5h each set)
Capacity
3350mAh x4
Physical
Weight
1.6 kg (without battery)
Size
372 mm x 163 mm x 106 mm
Operating Temperature
-10°C to 50°C (14°F to 113°F)
Operating Humidity
<85% RH
Waterproof/Dustproof
IP54
Also you can check product : NEW Stonex XH120 SLAM Handheld 3D Laser Scanner
X120GO has an integrated structure design with a built-in control and storage system and built-in replaceable lithium batteries. Once pressed the start button, X120GO can start operations immediately, making data acquisition more efficient and convenient. X120GO can use GOapp to check and manage projects which will be updated and displayed synchronously. Real-time SLAM mapping and preview can be achieved via GOapp.
NEW Stonex XH120 SLAM Handheld 3D Laser Scanner (Stonex XH120)
Fast & Efficient
XH120 is an handheld laser scanner based on STONEX SLAM technology.
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time.
Boost your productivity reducing on site capturing time and post processing workload!
RAPID SCANNING
No more multiple scan stations, just move around the scene and collect in minutes the entire 3D point cloud.
REDUCED WORKLOAD
No more tedious and time-consuming cloud to cloud alignment, download the full data right after the capture.
STONEX SLAM TECHNOLOGY
Best in class sensors and real time processing: more range, more speed, more resolution, greater field of view, more reliability.
REAL TIME
See your scanning progress in real time and control XH120 with your tablet or smartphone.
CHARACTERISTICS
Rapid scanning (655.360 p/s)
Easy to use – no surveyor skills
Longest Range, Rotating Scan
Real time 3D point cloud
In & outdoor (no need of GPS)
No need of scan alignement
Specs :
Performance
Max Range
120 m
Scan Speed
655.360 points/s
Range Accuracy
± 3 cm
Precision
± 0.7 – 5cm
Range Resolution
0.3 cm
Vertical Resolution
32 channels
Field of View
360° (Horizontal)
45° (Vertical)
Number of Returns
1 (strongest)
Rotation Rate
20 Hz
Angular Sampling Accuracy
±0.01° (Vertical)
±0.01° (Horizontal)
Safety
Class 1 (eyesafe) laser
System
Memory
500GB (expandable)
Electrical
Power Supply
DC 18-36V/40W
Operating Time
4 hours (single battery)
Physical
Scanner Weight
2 kg
Processing Unit Weight
1.7 kg
Operating Temperature
0°C to 50°C (32°F to 122°F)
Waterproof/Dustproof
IP54
Material
Aircraft grade aluminium
Includes:
Processing Unit
Battery x2
Charger adapter
Data Cable
Wifi antenna
Straps
Flight Case trolley
Cube-slam Software
XH120 manager
Also you can check product : NEW Stonex X300 3D Laser Scanner
XH120 is an handheld laser scanner based on STONEX SLAM technology.
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time.
Boost your productivity reducing on site capturing time and post processing workload!
RAPID SCANNING
No more multiple scan stations, just move around the scene and collect in minutes the entire 3D point cloud.
REDUCED WORKLOAD
No more tedious and time-consuming cloud to cloud alignment, download the full data right after the capture.
STONEX SLAM TECHNOLOGY
Best in class sensors and real time processing: more range, more speed, more resolution, greater field of view, more reliability.
REAL TIME
See your scanning progress in real time and control XH120 with your tablet or smartphone.
CHARACTERISTICS
Rapid scanning (655.360 p/s)
Easy to use – no surveyor skills
Longest Range, Rotating Scan
Real time 3D point cloud
In & outdoor (no need of GPS)
No need of scan alignement
Specs :
Performance
Max Range
120 m
Scan Speed
655.360 points/s
Range Accuracy
± 3 cm
Precision
± 0.7 – 5cm
Range Resolution
0.3 cm
Vertical Resolution
32 channels
Field of View
360° (Horizontal)
45° (Vertical)
Number of Returns
1 (strongest)
Rotation Rate
20 Hz
Angular Sampling Accuracy
±0.01° (Vertical)
±0.01° (Horizontal)
Safety
Class 1 (eyesafe) laser
System
Memory
500GB (expandable)
Electrical
Power Supply
DC 18-36V/40W
Operating Time
4 hours (single battery)
Physical
Scanner Weight
2 kg
Processing Unit Weight
1.7 kg
Operating Temperature
0°C to 50°C (32°F to 122°F)
Waterproof/Dustproof
IP54
Material
Aircraft grade aluminium
Includes:
Processing Unit
Battery x2
Charger adapter
Data Cable
Wifi antenna
Straps
Flight Case trolley
Cube-slam Software
XH120 manager
Also you can check product : NEW Stonex X300 3D Laser Scanner
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time. XH120 is an handheld 3D laser scanner based on STONEX SLAM technology. Boost your productivity reducing on site capturing time and post processing workload!
NEW Stonex X150 3D Laser Scanner - High Accuracy (Stonex X150)
X150 Laser Scanner
Tough & Light
X150 is a robust and easy-to-use scanner for quick surveys up to 150 m. The multi-line full dome Lidar technology allows computing 3D models for a wide range of applications.
X150 comes with it’s own processing software and is also compatible with Stonex Cube-scan and Stonex Reconstructor software.
A perfect tool for fast topographic grade surveys and indoor floor maps.
STRONG CASE
Streamlined aluminum alloy case.
SMALL AND LIGHT
The scanner can be easily used by a single person thanks to its small size and weight of approximately 4 kg.
SELF CALIBRATING
± 5 degrees tilt supplement angle for precise leveling. A 360° one-stop scan requires only 45s.
PANORAMIC HDR CAMERA
Add colour to your scan.
WIRELESS CONTROL
Through the dedicated APP it is possible to control the device remotely. Scan with one click and check quality via real-time preview.
Specifications :
Performance
Range of action
0.2 – 150 m
Field of view
360° horizontal, 280° vertical
3D scan rate
up to 320,000 points/second
3D scanning speed at maximum resolution
4 min for 360 degree scanning
3D scanning speed in “Fast scan” mode
5 sec for 360 degree scanning
2-axis compensator with /- 5 degrees working range
3D scanning accuracy
up to 1 cm
Remote control with Android controller
Camera
360 degree HDR camera
18 Megapixel resolution
Connectivity
WiFi/Bluetooth, MicroSD, Micro USB
Memory
250GB hard disk 128 GB TF card
Dimensions
364 x 139 x 122 mm
Weight
approx. 4 Kg
Protection against water and dustI
P54
Batteries
LiPo 65 x 2 pieces
Battery life
4 hours each
3D Software
Stonex 3D Reconstructor
Stonex Cube Scan
Includes :
STONEX X150 in a carrying case
2 LiPo 6S 22.8V batteries
Adapter for charging
data cable
Carbon fiber tripod
Cube x150 software
X150 app
included panorama camera
Also you can check product : NEW Stonex XH120 SLAM Handheld 3D Laser Scanner
Tough & Light
X150 is a robust and easy-to-use scanner for quick surveys up to 150 m. The multi-line full dome Lidar technology allows computing 3D models for a wide range of applications.
X150 comes with it’s own processing software and is also compatible with Stonex Cube-scan and Stonex Reconstructor software.
A perfect tool for fast topographic grade surveys and indoor floor maps.
STRONG CASE
Streamlined aluminum alloy case.
SMALL AND LIGHT
The scanner can be easily used by a single person thanks to its small size and weight of approximately 4 kg.
SELF CALIBRATING
± 5 degrees tilt supplement angle for precise leveling. A 360° one-stop scan requires only 45s.
PANORAMIC HDR CAMERA
Add colour to your scan.
WIRELESS CONTROL
Through the dedicated APP it is possible to control the device remotely. Scan with one click and check quality via real-time preview.
Specifications :
Performance
Range of action
0.2 – 150 m
Field of view
360° horizontal, 280° vertical
3D scan rate
up to 320,000 points/second
3D scanning speed at maximum resolution
4 min for 360 degree scanning
3D scanning speed in “Fast scan” mode
5 sec for 360 degree scanning
2-axis compensator with /- 5 degrees working range
3D scanning accuracy
up to 1 cm
Remote control with Android controller
Camera
360 degree HDR camera
18 Megapixel resolution
Connectivity
WiFi/Bluetooth, MicroSD, Micro USB
Memory
250GB hard disk 128 GB TF card
Dimensions
364 x 139 x 122 mm
Weight
approx. 4 Kg
Protection against water and dustI
P54
Batteries
LiPo 65 x 2 pieces
Battery life
4 hours each
3D Software
Stonex 3D Reconstructor
Stonex Cube Scan
Includes :
STONEX X150 in a carrying case
2 LiPo 6S 22.8V batteries
Adapter for charging
data cable
Carbon fiber tripod
Cube x150 software
X150 app
included panorama camera
Also you can check product : NEW Stonex XH120 SLAM Handheld 3D Laser Scanner
X150 is a robust and easy-to-use scanner for quick surveys up to 150 m. The multi-line full dome Lidar technology allows computing 3D models for a wide range of applications. X150 comes with it’s own processing software and is also compatible with Stonex Cube-scan and Stonex Reconstructor software. A perfect tool for fast topographic grade surveys and indoor floor maps.
NEW Stonex X70GO SLAM 3D Laser Scanner (Stonex X70GO)
X70GO SLAM Laser Scanner
The new era of hybrid scanning
X70GO is a real-time 3D model reconstruction device which integrates inertial navigation module, high performance computer and storage system. It is equipped with a 360° rotating head, which, combined with the SLAM algorithm, generates high-precision point cloud data.
A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.
X-WHIZZ MODE
X70GO merges mobile and stationary surveying. To the advantageous SLAM solution that allows you to survey large areas in a very short time, it combines a stationary mode to scan with higher resolution. Mount X70GO on a monopod and stand still in key areas for a few seconds. It is the perfect trade-off for those who need speed and detail in a mobile survey.
REAL TIME RESULTS
The built-in visual camera makes the real time SLAM algorithm more stable, especially in weak structural textures environments. The data are ready to be used as soon as the survey is completed.
RAPIDITY AND REDUCED WORKLOAD
No more multiple scan station, just move around the scene to collect the entire 3D point cloud, without time-consuming cloud to cloud alignment.
AUTOMATIC CONTROL POINT MEASUREMENT
When capturing data, X70GO is able to collect reference points too. They can be matched with known control points to georeference the scans.
HIGH PERFORMANCE COMPUTATION
The system can directly output the mapping results after the acquisition is completed. You can choose to post-process the data, in case you desire to improve its accuracy.
SPECS :
LIDAR
Max Range
70m @80%
Min Range
0.1m
Scanning Point Freq
200.000pts/s
Field of View
360 degree H, 7 - 52 degree V
Laser Class
Class 1
Wavelenght
905nm
Frame Rate
10Hz
COLOR CAMERA
N of Pixels
12 Mpx
Diagonal FOV
210 degree
Focal Lenght
1.26mm
Resolution
4000x3000px
Sensor Size
1 Inch
Pixel Size
1.55m
VISUAL CAMERA
N of pixels
12 Mpx
Diagonal FOV
100 degree
Focal Lenght
3.24 mm
Resolution
4000x3000 px
Sensor Size
1 Inch
Pixel Size
1.55
SYSTEM
Relative Accuracy
6mm
Control Point Support
Ground and wall
Data Storage
512Gb SSD
Communication
Wi-fi, USB type C, LEMO
Operating Mode
Slam Mode
Static Mode ( X-Whizz )
Processing Mode
Real Time Processing
Post-processing with Gopost
ELECTRICAL SPECIFICATION
Power Consumption
20w
System Supply voltage
20v
Operating time
1.5 h ( single battery )
Battery input voltage
5-20v
Battery Output voltage
10.8v
Battery capacity
3000mAh
PHYSICAL SPECIFICATION
Weight
925 g ( Without battery )
1450 g ( With Battery )
Size
364.5 mm x 173.8 mm x 170 mm
Operating Temperature
-20 degree C 50 degree C ( -4 degree F to 122 degree F )
Storage Temperature
-40 degree C to 70 degree C ( - 40 degree F to 158 degree F )
Operating humidity
< 95%
Waterproof/Dustproof
IP54
Includes :
X70GO
Carrying case
Battery handle
GCP base
EU and US charger
Power cable
GOapp
GOpost
USB dongle for GOpost
calibration test
Also you can check product : NEW Stonex X150 3D Laser Scanner - High Accuracy
The new era of hybrid scanning
X70GO is a real-time 3D model reconstruction device which integrates inertial navigation module, high performance computer and storage system. It is equipped with a 360° rotating head, which, combined with the SLAM algorithm, generates high-precision point cloud data.
A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.
X-WHIZZ MODE
X70GO merges mobile and stationary surveying. To the advantageous SLAM solution that allows you to survey large areas in a very short time, it combines a stationary mode to scan with higher resolution. Mount X70GO on a monopod and stand still in key areas for a few seconds. It is the perfect trade-off for those who need speed and detail in a mobile survey.
REAL TIME RESULTS
The built-in visual camera makes the real time SLAM algorithm more stable, especially in weak structural textures environments. The data are ready to be used as soon as the survey is completed.
RAPIDITY AND REDUCED WORKLOAD
No more multiple scan station, just move around the scene to collect the entire 3D point cloud, without time-consuming cloud to cloud alignment.
AUTOMATIC CONTROL POINT MEASUREMENT
When capturing data, X70GO is able to collect reference points too. They can be matched with known control points to georeference the scans.
HIGH PERFORMANCE COMPUTATION
The system can directly output the mapping results after the acquisition is completed. You can choose to post-process the data, in case you desire to improve its accuracy.
SPECS :
LIDAR
Max Range
70m @80%
Min Range
0.1m
Scanning Point Freq
200.000pts/s
Field of View
360 degree H, 7 - 52 degree V
Laser Class
Class 1
Wavelenght
905nm
Frame Rate
10Hz
COLOR CAMERA
N of Pixels
12 Mpx
Diagonal FOV
210 degree
Focal Lenght
1.26mm
Resolution
4000x3000px
Sensor Size
1 Inch
Pixel Size
1.55m
VISUAL CAMERA
N of pixels
12 Mpx
Diagonal FOV
100 degree
Focal Lenght
3.24 mm
Resolution
4000x3000 px
Sensor Size
1 Inch
Pixel Size
1.55
SYSTEM
Relative Accuracy
6mm
Control Point Support
Ground and wall
Data Storage
512Gb SSD
Communication
Wi-fi, USB type C, LEMO
Operating Mode
Slam Mode
Static Mode ( X-Whizz )
Processing Mode
Real Time Processing
Post-processing with Gopost
ELECTRICAL SPECIFICATION
Power Consumption
20w
System Supply voltage
20v
Operating time
1.5 h ( single battery )
Battery input voltage
5-20v
Battery Output voltage
10.8v
Battery capacity
3000mAh
PHYSICAL SPECIFICATION
Weight
925 g ( Without battery )
1450 g ( With Battery )
Size
364.5 mm x 173.8 mm x 170 mm
Operating Temperature
-20 degree C 50 degree C ( -4 degree F to 122 degree F )
Storage Temperature
-40 degree C to 70 degree C ( - 40 degree F to 158 degree F )
Operating humidity
< 95%
Waterproof/Dustproof
IP54
Includes :
X70GO
Carrying case
Battery handle
GCP base
EU and US charger
Power cable
GOapp
GOpost
USB dongle for GOpost
calibration test
Also you can check product : NEW Stonex X150 3D Laser Scanner - High Accuracy
X70GO is a real-time 3D model reconstruction device which integrates inertial navigation module, high performance computer and storage system. It is equipped with a 360° rotating head, which, combined with the SLAM algorithm, generates high-precision point cloud data. A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.
NEW Stonex X300 3D Laser Scanner (X300)
X300 Laser Scanner , Simple, tough, accurate
STONEX X300 is a 3D Laser Scanner designed to provide accurate data every time and for any project.
The ease of use, reliability, flexibility and price make X300 a highly competitive product, now further improved with new features.
The X300 File Manager tool allows you to convert the data collected with the X300 Laser Scanner into Stonex Reconstructor file format or other standard formats. The files obtained can be used directly in third party software, such as CAD, forensic analysis or road accident analysis.
RUGGED DESIGN
The fully sealed case protects your inversion making it possible to get the job done where others fail, regardless of dust, humidity, heat or bumps.
EASE OF USE
Push one button and control X300 with your smartphone or tablet. Laser scanning has never been easier.
PRICE AND QUALITY
X300 balances the performance you really need in a wide range of applications with a reasonable price.
HQ CAMERA
Sony 16 Mpx sensor, low distortion lens with HDR. Brilliant coloration and wide tonal range.
COMPLETE CONTROL
Full Camera Control: Exposure, gain, white balance
SPECS :
Performance
Range
1.6 – 30 m, 100% reflectivity (on white)
Horizontal Field of View
360 ° (full panoramic)
Vertical Field of View
90 ° (-25° to 65°)
Scan Rate
Up to 60,000 points/s
Laser Beam Divergence
0.076° x 0.029°
Grid Spacing
39 mm x 39 mm @ 100 m
Angular Resolution
1.35 in (O) x 1.35 in (V), at max resolution
Range Accuracy
< 5 mm @ 50 m – (1 sigma)
System
Scanning Optics
Vertically rotating mirror, horizontally rotating base
Laser Class
Class 1 M (IEC 60825-1)
Laser Wavelength
905 nm (invisible)
Dual-Axis Compensator
Accuracy 0.08°, Range /- 20°
Integrated Cameras
High quality, no distortion
Resolution
192 MP over 360°
Data Storage
32 GB integrated memory
Data Transfer
Wifi, USB, Ethernet
Scanner Control
Dedicated Wifi web interface for smartphone/tablet (Android, iOS and Windows Mobile)
Physical
Scanner Size
215 mm (H) x 170 mm (W) x 430 mm (H)
Scanner Size
6.15 kg (12.35 lbs) – without battery
Battery Size
42 mm (H) x 165 mm (W) x 120 mm (H)
Battery Weight
0.85 kg (1.76 lbs)
AC Power Supply Size
147 mm (H) x 63 mm (W) x 38 mm (H)
AC Power Supply Weight
200 g (0.441 lbs)
Electrical
Power Supply
12 V (battery or external power unit)
Power Consumption
40 W (on average)
Battery Type
Li-ion (2 batteries supplied)
Working Time
> 3 hrs each battery
Environmental
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-25°C to 80°C (-13°F to 176°F)
Humidity
Non-condensing
Protection Class
IP65
INCLUDES :
Battery Charger 3A (BC-100)
X300 Battery. 11,1 V, 8000 mAh x2pcs
STJ10-B, Tribrach [metal,three jaws, with optical plummet, black]
12 months warranty
Also you can check product : NEW Stonex X100 3D Laser Scanner
STONEX X300 is a 3D Laser Scanner designed to provide accurate data every time and for any project.
The ease of use, reliability, flexibility and price make X300 a highly competitive product, now further improved with new features.
The X300 File Manager tool allows you to convert the data collected with the X300 Laser Scanner into Stonex Reconstructor file format or other standard formats. The files obtained can be used directly in third party software, such as CAD, forensic analysis or road accident analysis.
RUGGED DESIGN
The fully sealed case protects your inversion making it possible to get the job done where others fail, regardless of dust, humidity, heat or bumps.
EASE OF USE
Push one button and control X300 with your smartphone or tablet. Laser scanning has never been easier.
PRICE AND QUALITY
X300 balances the performance you really need in a wide range of applications with a reasonable price.
HQ CAMERA
Sony 16 Mpx sensor, low distortion lens with HDR. Brilliant coloration and wide tonal range.
COMPLETE CONTROL
Full Camera Control: Exposure, gain, white balance
SPECS :
Performance
Range
1.6 – 30 m, 100% reflectivity (on white)
Horizontal Field of View
360 ° (full panoramic)
Vertical Field of View
90 ° (-25° to 65°)
Scan Rate
Up to 60,000 points/s
Laser Beam Divergence
0.076° x 0.029°
Grid Spacing
39 mm x 39 mm @ 100 m
Angular Resolution
1.35 in (O) x 1.35 in (V), at max resolution
Range Accuracy
< 5 mm @ 50 m – (1 sigma)
System
Scanning Optics
Vertically rotating mirror, horizontally rotating base
Laser Class
Class 1 M (IEC 60825-1)
Laser Wavelength
905 nm (invisible)
Dual-Axis Compensator
Accuracy 0.08°, Range /- 20°
Integrated Cameras
High quality, no distortion
Resolution
192 MP over 360°
Data Storage
32 GB integrated memory
Data Transfer
Wifi, USB, Ethernet
Scanner Control
Dedicated Wifi web interface for smartphone/tablet (Android, iOS and Windows Mobile)
Physical
Scanner Size
215 mm (H) x 170 mm (W) x 430 mm (H)
Scanner Size
6.15 kg (12.35 lbs) – without battery
Battery Size
42 mm (H) x 165 mm (W) x 120 mm (H)
Battery Weight
0.85 kg (1.76 lbs)
AC Power Supply Size
147 mm (H) x 63 mm (W) x 38 mm (H)
AC Power Supply Weight
200 g (0.441 lbs)
Electrical
Power Supply
12 V (battery or external power unit)
Power Consumption
40 W (on average)
Battery Type
Li-ion (2 batteries supplied)
Working Time
> 3 hrs each battery
Environmental
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-25°C to 80°C (-13°F to 176°F)
Humidity
Non-condensing
Protection Class
IP65
INCLUDES :
Battery Charger 3A (BC-100)
X300 Battery. 11,1 V, 8000 mAh x2pcs
STJ10-B, Tribrach [metal,three jaws, with optical plummet, black]
12 months warranty
Also you can check product : NEW Stonex X100 3D Laser Scanner
STONEX X300 is a 3D Laser Scanner designed to provide accurate data every time and for any project.
The ease of use, reliability, flexibility and price make X300 a highly competitive product, now further improved with new features. The X300 File Manager tool allows you to convert the data collected with the X300 Laser Scanner into Stonex Reconstructor file format or other standard formats. The files obtained can be used directly in third party software, such as CAD, forensic analysis or road accident analysis.
- 1
