USED Leica ScanStation 2 HDS - 4050 Laser Scanner - Calibrated

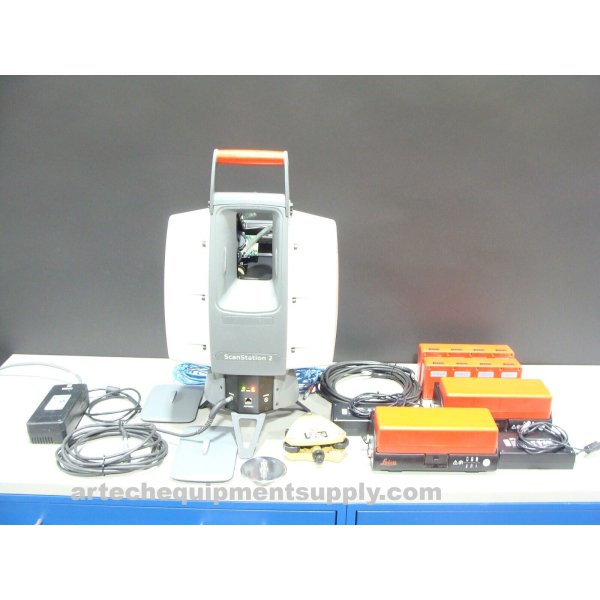

With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 has lifted laser scanning to the next level.This speed and productivity boost builds on the already industry-leading versatility of the ScanStation™ class of laser scanner to make High-Definition Surveying™ (HDS™) profitable for even more as-built and topographic survey projects. Set includes the Scanstation itself with AC power supply / adapter cable, tripod mount and large shipping case. Target package with 6 tripods, 6 rectangular targets, two circular rotating targets, & various extensions poles in large rolling shipping case. Also included is two battery chargers and 4 batteries & cables for field use.
$1,640.00
Leica HDS 4050 ScanStation 2 Laser Scanner
Leica ScanStation 2A New Level of Versatility and Speed in Laser Scanners
With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 has lifted laser scanning to the next level.This speed and productivity boost builds on the already industry-leading versatility of the ScanStation™ class of laser scanner to make High-Definition Surveying™ (HDS™) profitable for even more as-built and topographic survey projects.
A New Level of Speed and Productivity
For many as built and topographic surveys, laser scanners have already proven to significantly reduce field labor compared to traditional methods.ScanStation 2’s jump-step increase inpulsed scan speed further slashes these costs – field labor is now as little as one-fifth of that of traditional methods for many projects.
Dramatically faster scanning also lets users:
Collect data in tighter time windows
Reduce time spent in hazardous locations
Provide project results faster
Collect even more complete data
“Squeeze in” additional service requests from clients
A New Level of Versatility for Laser Scanning
Infrastructure
ScanStation 2 extends the benefits of safe, cost-effective road surveys from urban and multi-lane roads & intersections to 2-lane roads & intersections
Sites
Using ScanStation 2 for topographic surveys of small sites and sites up to hundreds of acres cuts initial survey costs and reduces site re-visits.
Buildings
Small buildings and tall buildings can be cost-effectively surveyed, both inside and out. Digital photos can be overlaid for added realism.
Very High Speed Pulsed Laser
Excellent range, up to 10-times faster than other pulsed scanners, and capable of single point surveying
Integrated High-Resolution Camera
For fast scene selection and compelling, auto-rectified photo overlays
HI Marks, Tribrach Mount, Carry Handle, and QuickScan™ Button
Standard procedures and accessories make ScanStation 2 easy to learn
Advanced Timing Electronics
Integrated with a patented microchip laser to deliver accurate,low-noise distance measurements
X-function Compatibility
Interoperable with Leica System 1200
Advanced Scripting Controls
SmartScan™ firmware allowsautomated sequencing of scansand unattended operation
Integrated, Dual-Axis Level Compensator
For survey-grade traversing and stakeout
External Bubble Level
Conveniently located on back of rotating scan head
SPECS :
Instrument Type
Pulsed, dual-axis compensated, very-high speed laser scanner, with survey-grade accuracy, range, and field-of-view
User interface
Notebook or Tablet PC
Camera
Integrated high-resolution digital camera
Accuracy of single measurement
Position* 6 mm
Distance*
4 mm
Angle
(horizontal/vertical) 60μrad/60μrad (3.8 mgon/3.8 mgon) **
Laser spot size
From 0 – 50 m: 4 mm (FWHH-based); 6 mm (Gaussian-based)
Modeled surface precision/noise
2mm **
Target acquisition
2 mm std. deviation
Dual-axis compensator
Resolution 1 ", dynamic range /- 5'
Data integrity monitoring
Periodic self-check during operation and start-up
Laser scanning system
Range
300 m @ 90 %; 134 m @18 % albedo
Scan Rate
Maximum instantaneous: up to 50,000 points/sec Average: dependent on specific scan density and field-of-view
Scan Density
<1 mm max, through full range; fully selectable horizontal and vertical spacing; single point dwell capability
Laser Class
3R (IEC-60825-1), visible green
Lighting
Fully operational between bright sunlight and complete darkness
Power Supply
36 V; AC or DC; hot swappable
Specifications subject to change without notice
See Leica ScanStation 2 Product Specifications for full technical data*
At 50 m range, one sigma ** One sigma
Includes:
1X Leica HDS Scan Station 2 3D Laser Scanner
Cyclone Scan, Cyclone Model, and Cyclone Register
3X twin target assembly
1X long range target assembly
2X additional long range targets
Carrying case
Wireless Connection
All cables and power cords
