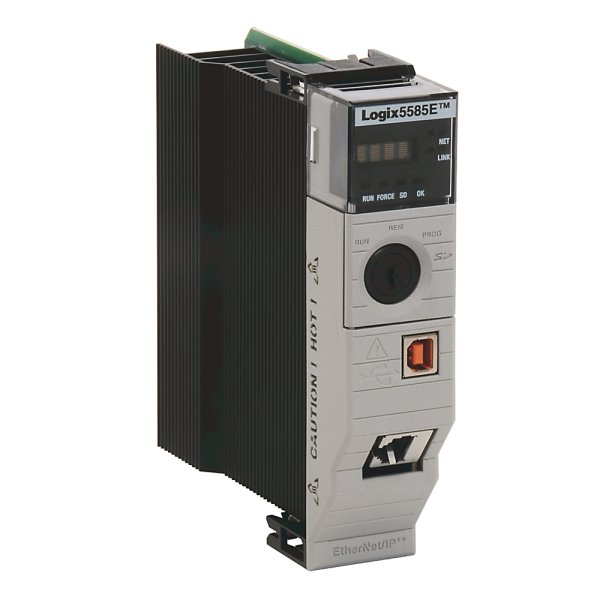

New Allen Bradley ControlLogix 5580 Controller 1756-L84E
ControlLogix 5580 and ControlLogix 5570 controllers are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number. ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over network links. The ControlLogix 5580 controllers have an embedded Ethernet port for a direct connection to Ethernet-enabled devices and networks, and also support communication interface modules in the local chassis. To provide communication for ControlLogix 5570 or ControlLogix 5560 controllers, install the appropriate communication interface module into the local chassis.New Allen Bradley ControlLogix 5580 Controller 1756-L84E
The Allen Bradley 1756-L84E is a ControlLogix controller. It is part of the Programmable Automation Controller (PAC) family which features a user memory of 20MB with integrated One (1) Ethernet and One (1) USB communication ports. It is capable of interfacing 128,000 Discrete I/O and 4000 Analog I/O memory.
The Allen Bradley 1756-L84E is a ControlLogix controller. This controller belongs to the high-end controller with modern design and connectivity. This controller is ideally used for large applications as it can be used to interface and control Input and output devices, specifically, 128,000 Discrete Input and Outputs and 4000 Analog Inputs and Outputs.
It supports local I/O control as well as implementation of distributed I/O architecture utilizing one or more communication protocols such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, and Third-party process and device networks
The 1756-L84E comes with integrated communication port such as One (1) Ethernet I/P. This embedded port supports 10/100/1000 Mbps transmission speed and may be used to communicate with Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and other controllers through messaging instructions within the same Ethernet network. The USB port is a USB 2.0 that supports 12 Mbps communication speed.
The 1756-L84E has a built-in user memory amounting to 20MB. An expansion non-volatile memory may be installed with the use of 1784-SD2 which is a 2GB Secure Digital (SD) card. This controller does not require a battery to retain the contents of the volatile memory as it comes with the modern energy storage solution, eliminating the need for use of batteries, making the controller user and environmentally friendly.
The 1756-L84E ControlLogix 5580 Controller by Allen Bradley is a high-performance controller with up to 128,000 I/O which enhance machine automation and increase performance. It comes with 20MB of user program storage memory and allows for expanded and long-term program storage via the optional pre-installed 2 GB Secure Digital Card (1784-SD2). Embedded on the controller is an energy storage module which removes the need for an extra battery and the entire controller draws a backplane current of 5mA at 1.2V DC and of 1.2mA at 5.1V DC. The 1756-L84E has an operational thermal dissipation of 21.2 BTU/hr, and provides 50V isolation between USB port-to-backplane, Ethernet port-to-backplane, and USB port-to-Ethernet port, utilizing basic insulation tested at 1000V AC for 1 minute. The controller fits into any 1756 Chassis slot and uses a single slot width. The number of tasks performed by the controller is unlimited through the local I/O event triggers mechanism and programming are achieved using the Studio 5000 Logix Designer Application Version 3.0 or greater. It also has a built-in embedded 1 GB Ethernet port which supports a maximum of 250 nodes and provides enhanced performance, wider communication, and integrated motion control on the EtherNet/IP network. The controller is designated the T4 temperature code and is IEC tested to operates at 0-60 deg. Celcius temperature range, and functions without de-rating at 5-95% non-condensing relative humidity limits. The 1756-L84E can withstand a shock of 30G and a vibration of 2G and the entire controller weighs approximately 0.394kg.
Specifications :
Specifications :
User memory
20Mb
Digital I/O
max 128,000
Analog I/O max
4000 Total
Total I/O max
128,000
Optional nonvolatile memory storage
2 GB Secure Digital Card (1784-SD2), ships pre-installed in the controller(1)
Energy storage Module
module Embedded in controller, nonremovable
Number of power cycles
80,000 Current
Current draw @ 1.2V DC
5.0 mA
Current draw 5.1V DC
1.20 A
Power dissipation
6.2 W
Thermal dissipation
21.2 BTU/hr\
Residual Stored Energy
Not Applicable
Isolation voltage
50V (continuous), Basic Insulation type, USB port to backplane, Ethernet port to backplane, and USB port to Ethernetport Compliant and tested according to IEC/UL 61010-1
Weight approx.
0.394 kg (.868 lb)
Slot width
1
Module location
Chassis-based, any slot
Chassis
1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, 1756-A17 K Series B, Series C
Power supply, standard
1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K, 1756-PH75, 1756-PC75
Power supply, redundan
1756-PA75R, 1756-PA75RK, 1756-PB75R, 1756-PB75RK, 1756-PSCA2, 1756-PSCA2K
Wire category(2)
3 - on USB port 2 - on Ethernet ports
Wire size
Ethernet connections: Ethernet cabling and installation according to IEC 61918 and IEC 61784-5-2
North American temperature code
T4
ATEX temperature code
T4
IECEx temperature code
T4
Enclosure type rating
None (open-style)
