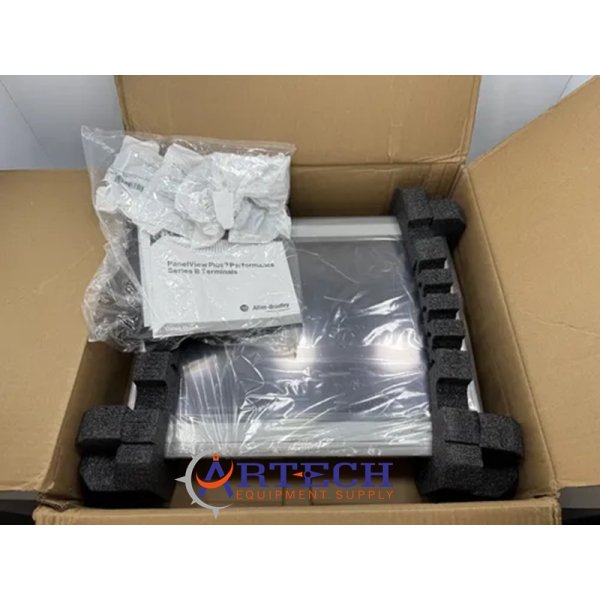

NEW Allen Bradley PanelView Plus 7 Performance Graphic Terminal 2711P-T19C22D9P

NEW Allen Bradley PanelView Plus 7 Performance Graphic Terminal 2711P-T19C22D9P

Our Bulletin 2711P PanelView Plus 7 Graphic Terminals are available in standard and performance versions. Our performance versions are available in conformal coat, stainless steel and on-machine (ArmorView™ Plus 7) options, offering flexibility to meet your specific needs. You can use FactoryTalk® View Machine Edition to build your application, help simplify configuration and strengthen your Integrated Architecture solution. These terminals include Ethernet connectivity and enable you to monitor applications from remote locations with VNC server and FactoryTalk ViewPoint connectivity.

PanelView Plus 7 Standard

Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
Offers display sizes from 4...15 in. with wide screen and on-screen keypad options
Allows monitoring of applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
Uses an SD card or USB drive to quickly copy and restore your application
Includes email and texting notification capabilities
Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller
Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
Features single or DLR Ethernet ports for network connectivity
Includes option for Allen‑Bradley branded and brandless terminals

PanelView Plus 7 Performance

Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics
Offers display sizes from 7...19 in. with wide screen and keypad options
Includes video playback support, which provides advanced user help capabilities
Allows monitoring of applications from a remote location with VNC server connectivity and FactoryTalk ViewPoint
Uses an SD card or USB drive to quickly copy and restore the operator interface
Includes email and texting notification capabilities
Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)
Features two Ethernet ports that support DLR, linear, or star network topologies
Includes option for Allen‑Bradley branded and brandless terminals
Conformally Coated Version

Available on all PanelView Plus 7 Performance versions with touch-only displays and 15 in. Keypad display
Severity Level GX per ANSI/ISA 71.04-2013
Stainless Steel Version

Offers brandless display in 9, 10, 12, and 15 in. sizes
Features 316 stainless steel bezel
Includes replaceable blue food-grade silicone gasket
Includes conformal coating
Features NSF certification
UL IP69 rated and tested to IP69K according to ISO 20653

ArmorView Plus 7 Version

Offers 12 in. display size in a fully self-enclosed panel
Features IP66 protection for a cabinet-free HMI solution
Offers sixteen standard button plate configurations
Includes option to individually customize buttons and switches, plus a hard-wired E-stop
Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface

Specifications :

Display Size

7 inch display (170 x 212 mm)
9 inch display (190 x 280 mm)
10 inch display (252 x 297 mm)
12 inch display (240 x 340 mm)
15 inch display (318 x 381 mm)
19 inch display (411 x 485 mm)

Display Type
Windows 10 IoT Core (LTSC)

RAM
4 GB

Real-time clock
Yes, battery-backed time clock time stamps critical data. Accuracy /-2 minutes per month

Operating Temperature
0…55 °C (32…131 °F)

Certifications
C-UL-us listed
Class I, Div 2, Groups A,B,C,D, T4
Class II, Div 2, Groups F, G; Class III
KCC
CE (EMC)
CE (LVD)
RoHS
EAC
Morocco
NSF (stainless-steel only)

Conformally Coated
Available for 9, 10, 12, and 15 inch displays

SD
1 x SDHC

USB
1 USB high-speed 3.0 port (Type A) and 1 USB 2.0 (Type A)

Ethernet
Either 1 RJ45 10/100 MB port or 2 10/100Base-T Auto MDI/MDIX Ethernet ports that support DLR, linear or star network topologies

Input Power
DC (18...30V DC)

Standard Software
FactoryTalk® View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later

Also you can check product : NEW Allen Bradley PanelView 5510 Graphic Terminal 2715P-B15CD

• Availability: 37 In Stock
• Model: 2711P-T19C22D9P
• Brand:
